DIN 5417(M3200/SP)-1976 滚动轴承用紧固零件带环槽轴
责任编辑：泰强不锈钢
作者：泰强不锈钢
人气：
发表时间:2015-08-15 19:07

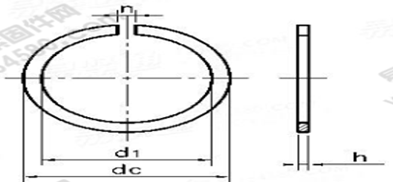

| 公称直径 d | h 0-0.1 | d1 | n ≈ | dc max | 每千件钢制品的重量≈kg | |
| 公称 | 公差 | |||||
| SP30 | 1.12 | 27.4 | ﹢0.4 0 | 3 | 34.7 | 2.78 |
| SP32 | 29.4 | 36.7 | 2.98 | |||
| SP35 | 32.4 | 39.7 | 3.22 | |||
| SP37 | 34 | 41.3 | 3.36 | |||
| SP40 | 37.3 | 44.6 | 3.6 | |||
| SP42 | 38.9 | ﹢0.5 0 | 46.3 | 3.75 | ||
| SP44 | 40.9 | 48.3 | 4 | |||
| SP47 | 43.7 | 4 | 52.7 | 5.3 | ||
| SP50 | 46.7 | 55.7 | 5.78 | |||
| SP52 | 48.8 | 57.9 | 5.92 | |||
| SP55 | 51.7 | 60.7 | 6.17 | |||
| SP56 | 52.4 | ﹢0.8 0 | 61.7 | 6.45 | ||
| SP58 | 54.4 | 63.7 | 6.67 | |||
| SP62 | 1.7 | 58.2 | 67.7 | 10.5 | ||
| SP65 | 61.2 | 70.7 | 11 | |||
| SP68 | 63.4 | 5 | 74.6 | 12.6 | ||
| SP72 | 67.4 | 78.6 | 14.7 | |||
| SP75 | 70.4 | 81.6 | 15.3 | |||
| SP80 | 75.4 | 86.6 | 16.3 | |||
| SP85 | 80.4 | 91.6 | 17.5 | |||
| SP90 | 2.46 | 85.4 | 96.5 | 26.6 | ||
| SP95 | 90.4 | 101.6 | 28.2 | |||
| SP100 | 95.2 | ﹢1.0 0 | 106.6 | 29.2 | ||
| SP110 | 105.2 | 116.6 | 32.8 | |||
| SP115 | 110.2 | 121.6 | 34.4 | |||
| SP120 | 2.82 | 113.6 | 7 | 129.7 | 60.6 | |
| SP125 | 118.6 | 134.7 | 63 | |||
| SP130 | 123.6 | 139.7 | 65.6 | |||
| SP140 | 133 | ﹢1.6 0 | 149.7 | 70.6 | ||
| SP145 | 138 | 154.7 | 73 | |||
| SP150 | 142.9 | 159.7 | 77.2 | |||
| SP160 | 152.9 | 169.7 | 81 | |||
| SP170 | 3.1 | 161.3 | 10 | 182.9 | 122 | |
| SP180 | 171.2 | 192.9 | 128 | |||
| SP190 | 181 | ﹢1.8 0 | 202.9 | 139 | ||
| SP200 | 191 | 212.9 | 148 | |||
| SP210 | 200.9 | 222.8 | 156 | |||
| SP215 | 205.9 | 227.8 | 160 | |||
| SP225 | 3.5 | 214.3 | 237 | 196 | ||
| SP230 | 219.2 | 242 | 200 | |||
| SP240 | 229.2 | 252 | 209 | |||
| SP250 | 239.2 | 262 | 220 | |||
